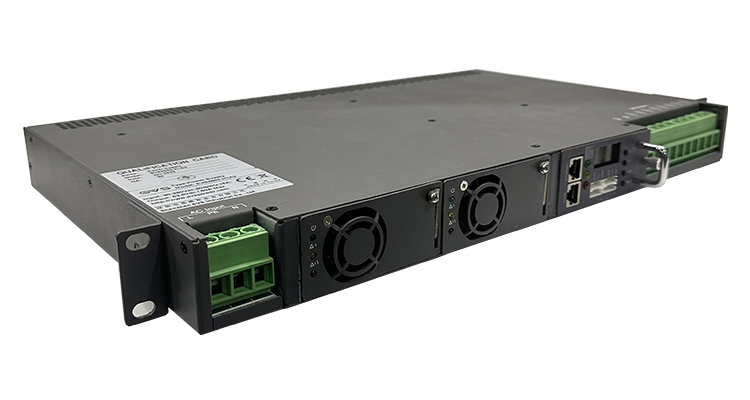

1U Rack Mount DC Power Supply 220V AC 24V DC Dual Rectifier Power System 30A 60A Single Output

24V DC Dual Rectifier：

Dual Rectifier Systems in Telecom Power: Redundancy, Reliability, and Efficiency

1. Introduction

In mission-critical telecom and industrial applications, uninterrupted power supply is non-negotiable. Dual rectifier switching power systems have emerged as a gold standard

for 24V DC power distribution, combining redundancy, high efficiency, and scalability. This article explains how dual rectifier systems work, their advantages, and why they are

indispensable for modern infrastructure.

2. What is a Dual Rectifier System?

A dual rectifier system integrates two independent rectifier modules in parallel within a single power shelf. Each rectifier converts AC input to regulated 24V DC output while

sharing the load or operating in redundancy mode.

Key Components:

AC-DC Rectifiers: High-efficiency switching modules (e.g., 1000W/2000W units).

Controller: Manages load sharing, fault detection, and battery charging.

Hot-Swap Design: Modules can be replaced without system shutdown.

3. Why Dual Rectifiers? Key Advantages

3.1 Redundancy for Maximum Uptime

N+1 Redundancy: If one rectifier fails, the other instantly takes the full load, ensuring zero downtime.

Critical for 5G/Edge Sites: Supports always-on networks for IoT, smart cities, and real-time communication.

3.2 High Efficiency and Energy Savings

Advanced Switching Topology: >95% efficiency (e.g., LLC resonant conversion).

Dynamic Load Sharing: Optimizes power distribution between rectifiers to minimize losses.

Example:

A 10kW dual-rectifier system saves 500+ kWh/year compared to legacy linear systems.

3.3 Scalability and Flexibility

Modular Design: Add rectifiers as power demands grow (e.g., from 3kW to 30kW).

Wide Input Range: Supports 90–300V AC, ideal for unstable grids in emerging markets.

4.Dual Rectifier 24V DC

EVSPOWER Dual Rectifier Information

1.wide voltage input range: 80 ~ 300Vac/100-400Vdc, suitable for all countries in the world of  power grid input;

2. the system has high power factor greater than 0.98;

3. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

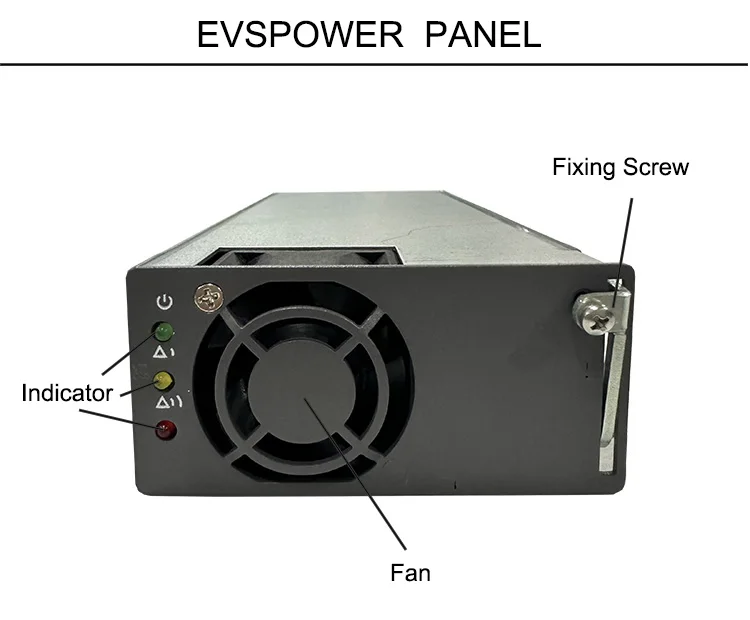

4.Small size, height 1U, 2*24V30A rectifier module

5.Configurable module: 10A, 15A, 20A, 30A for option

6.The standard 19-inch installation

7. SNMP controller and management and battery management

8.Provide RS485 Modbus SNMP communication interface

9.Module anti-theft function

10. Battery anti-reverse function

11. Input current detection

12.Support hot-swappable

13. The energy-saving sleep function

14. The independent design of lightning protection unit (optional)

15. The power supply can be installed in any 19-inch rack independently

EVS 24V DC Dual Rectifier Application

* Small scale program controlled exchanges

* Access network

* Transmission equipment

* Mobile communication

* Satellite communication ground station

* Microwave communication

5. 24V DC Dual Rectifier Configuration

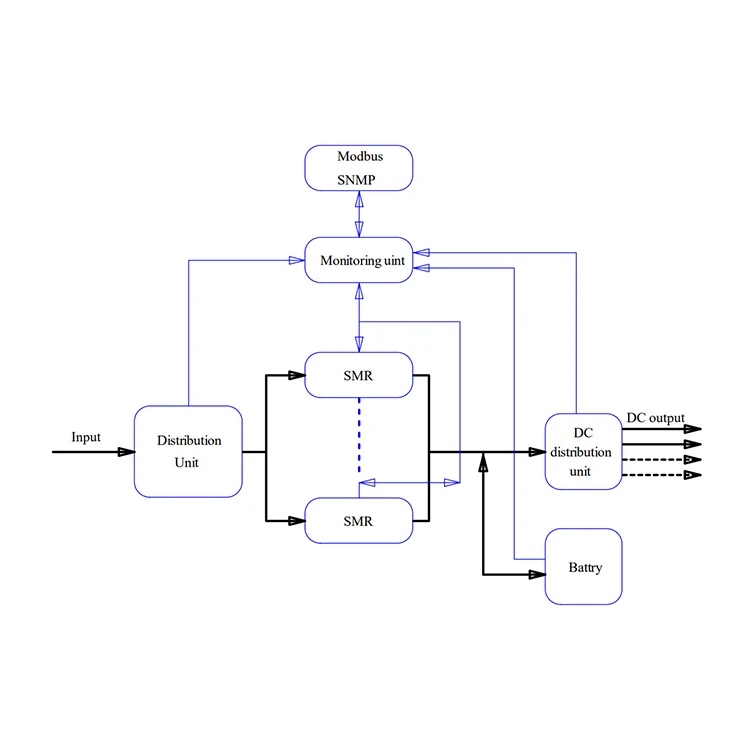

6.24V DC Dual Rectifier work principle

7.DC Power system performance index

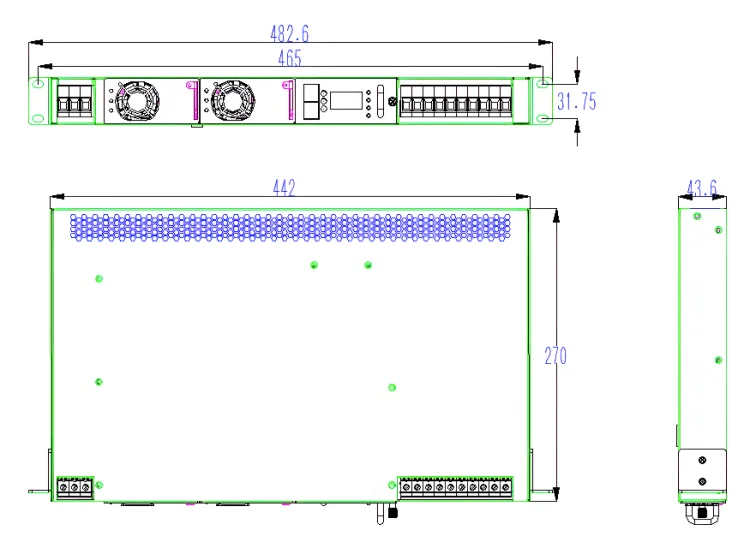

8,Mechanical Properties:

482.6mm(W)×270mm(D)×43.6mm(H)
