AC to DC Converter Application：

Small size program-controlled switches

Access network

Transmission equipment

Mobile communication

Satellite communications ground station

Microwave communication power supply

AC to DC Converter Features：

48V Rectifier adopts active power factor compensation technology, power factor up to 0.99.

AC input voltage of normal operating range as wide as 220v/380V.

Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 96%.

Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to

achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation,

online battery test function.

48V Rectifier adopts no damage hot insert and pull technology, replacement time less than 1min.

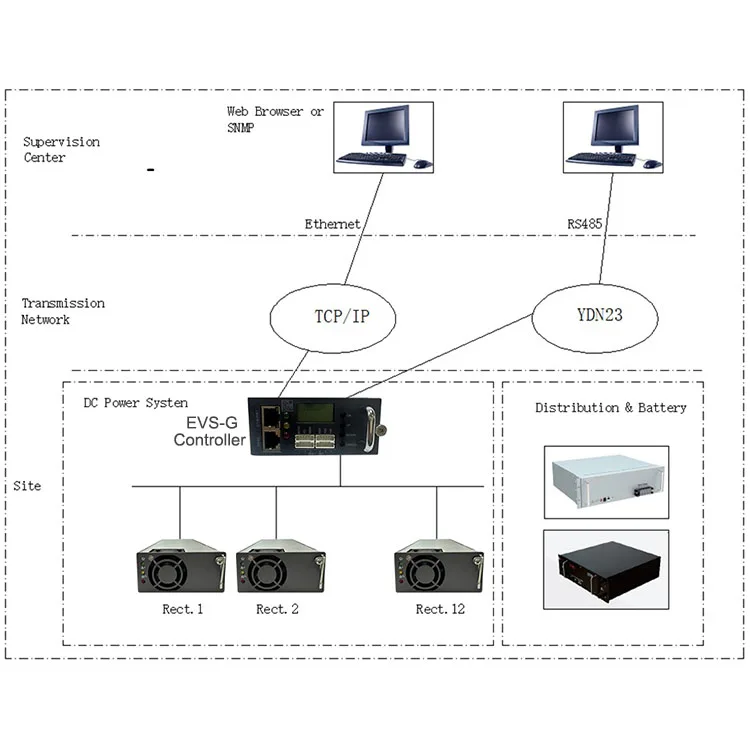

Network design, providing a variety of communication interfaces (for example: RS485, SNMP,dry contact),

flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning

protection design used in multi thunderstorm area.

Complete fault protection, fault alarm function.

Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.

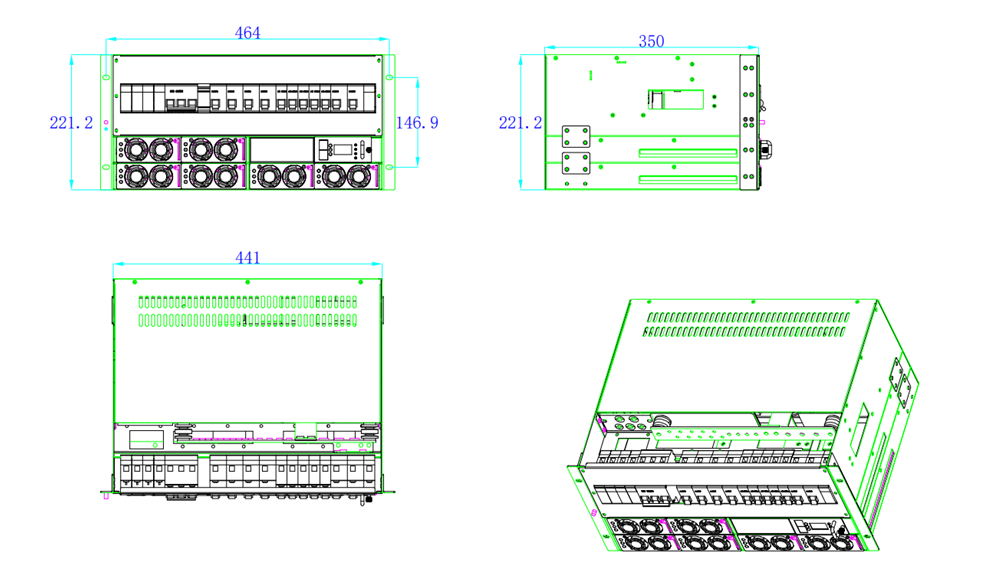

     Product size：482.6mm(W)×350mm(D)×222.2mm(H)

    Product weight：≤32Kg（with   modules）
