AC input power supply is the main and standby power supply of two-way three-phase four-wire system.
Rated input voltage: three-phase four-wire AC 220V/380V±15%,the frequency is 50Hz±5%;
Rated output DC voltage: 24V,48V,110V, 220V;
Rated output current: 10A, 20A, 30A, 40A, 50A, 60A, 90A, 100A, 120A, 150A, 200A, 300A, 400A,600A;
Complete machine noise: <55dB;
Working mode: continuous working;
Stabilized voltage precision: ≤0.5%;
Steady current precision: ≤0.5%;
Ripple factor: ≤0.1%
Un-equalizing current degree of parallel machine: ≤5%;
Power factor: ≥0.99
Protection grade: IP20;
The working principle of the charging module is as follows:

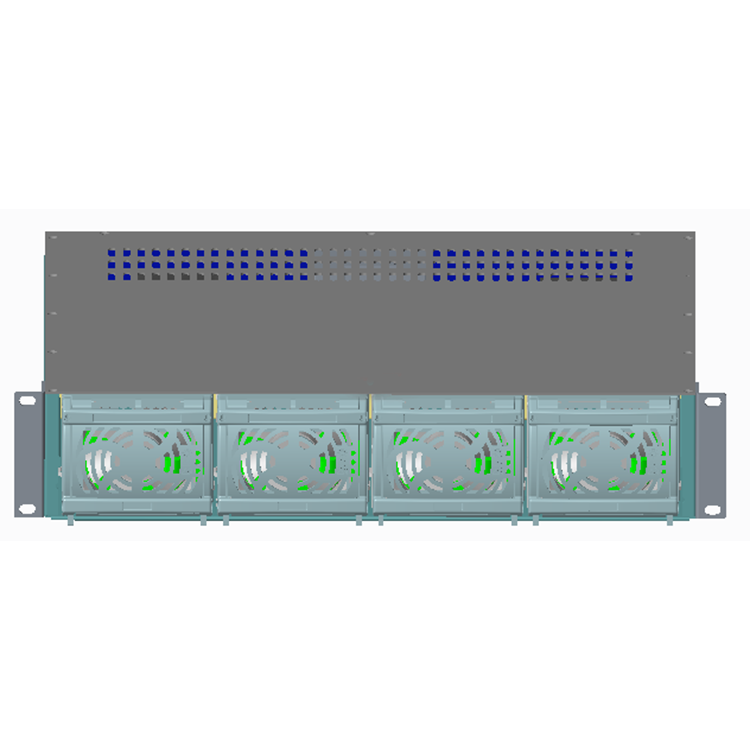

Modular rack rectifier system
Input voltage 220VAC/380VAC
Output voltage 24Vdc 75A / 48V 50A / 110Vdc 20A / 220V 10A
Output power :2900W (176VAC~264VAC Input)
1200W (90VAC~175VAC Input)
