Telecom Power 48V DC power system

date:2022-03-12 16:10:38


Telecom Power 48v DC power system


EVS Rectifier System  is for commucication,
Output voltage -54V,Output current 0-60A;Its features include input over/under-voltage protection, output over-current protection,

output over-voltage protection.



EVS Telecom Rectifier System ,dc power supply , with the following features and functions:



Telecom Power Information

1.Telecom power system 48v dc rectifier Power Supply with Modbus Snmp
2. Hot swappable and Plug and Play;
3 .N+1 redundancy,each module available in 30A@48Vdc;
4 .AC /DC distribution system for AC input/ DC output distribution and protection;
5. RS485, Modbus,SNMP communication for remote control;
6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
7.High Efficiency with low EMI. CE Safety and EMC certification
8. the system has high power factor greater than 0.98;
9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

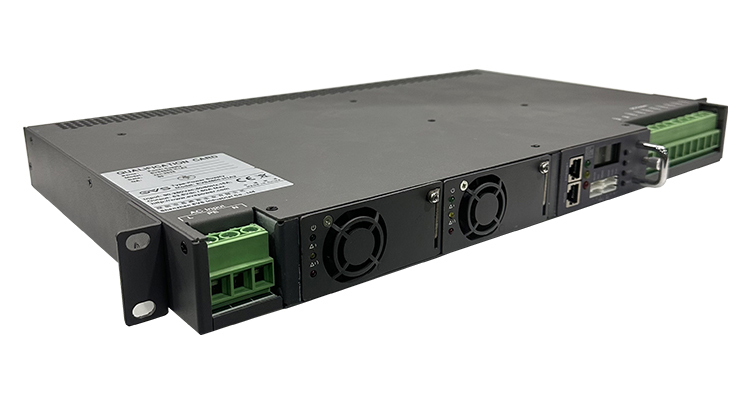

10.Small size, height 1U, 2*48V30A evspower rectifier module




Telecom Power application

* Small scale program controlled exchanges

* Access network

* Transmission equipment

* Mobile communication

* Satellite communication ground station

* Microwave communication


Are welcome to use the embedded power systems R & D and production by the Company, by the power distribution unit,
the monitoring module and the rectifier, stable performance, practical, back-office software operating system.
It can be used as dual input power supply


DC power system configuration

Rectifier power

SNMP   MonitorR4850  Rectifier R4830  RectifierR4825  RectifierR4815   Rectifier
1U-48601
1-2 Optional Optional
1U-481001 1-21-3 Optional Optional
2U-48901
3 Optional Optional

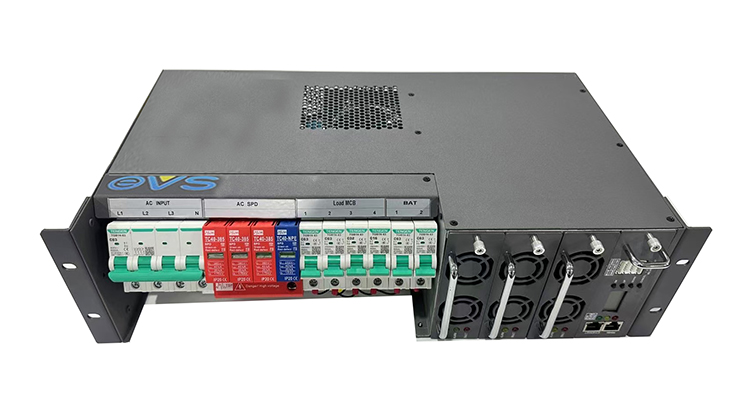

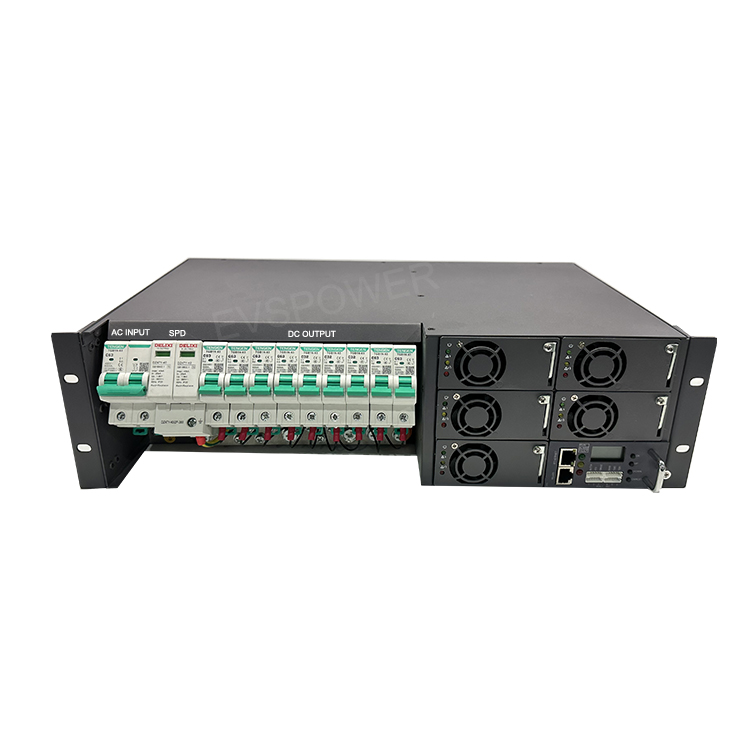

3U-48901
3 Optional Optional
3U-481501 1-3 1-5 Optional Optional

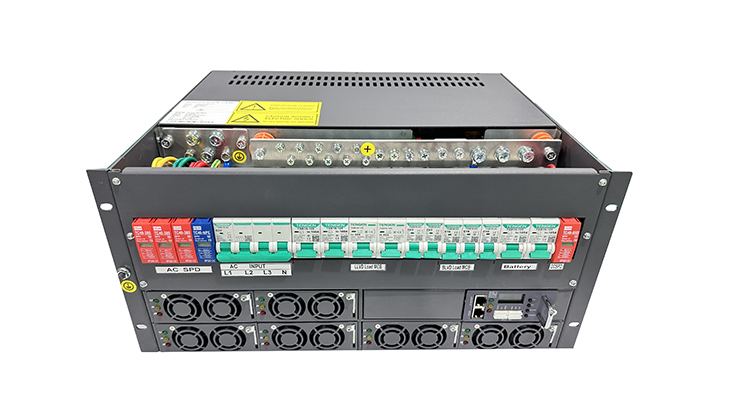

5U-482001 1-4 Optional Optional Optional
5U-4830011-5Optional


OEM ODM Telecom DC power system

Key attributes

Industry-specific attributes


Input Voltage80-300VAC / 100-400VDC
Output Voltage53.5VDC (42-58V)


Other attributes

Brand NameEVSPOWER
Product NameDC Power System
Output Current10-600A
Output Voltage53.5Vdc (42~58V)
input Frequency47~63Hz
Dimension482*258*xUmm
Overvoltage Protection59Vdc
Rectifier Module30A/50A
Working Temperature-40~55°C
